Trucks and Bogies



BELOW FLOOR TRUCK DESIGN BY TERRY RUSSELL
My trucks are fitted with 16mm and 12mm diameter 00 fine scale wheels and are intended for running on Peco code 100 rails and may not perform well on proprietary tracks now available.

They are fitted with 12 volt DC motors ready to run on 32mm or 24.5mm track gauge.

I use two combinations of motor and gear sets in my motored trucks

  1. The LH21 motor and Ultrascale 21:1 brass/nylon gear set for light card and resin models. Overall truck height of only 19mm [below the lower deck floor].
  2. The H1024 motor and Markits 30:1 brass gear set for exhibition running and heavier models. With an overall truck height of 24.5mm these trucks protrude through the lower deck floor.

These motors have adequate power to propel a model tram and give better running with modern electronic control. Bogie sets can be supplied with both trucks powered to special order if required.

"O" GAUGE TRUCKS
Fitted with a 12 Volt DC motor that is ready to run on 24.5mm or 32mm gauge track or other track gauges to special order.

4 WHEEL: C2, C4, C10, C12, C15, C16, C21, C23, C27, C31 and variants.
8 WHEEL: C3, C5, C6, C7, C9, C11, C13, C14, C17 to C20, C25, C26, C28, C29, C30, C32 and variants.

MOTORED OVERHEAD PICK-UP
8-WHEEL TRUCKS - Each priced at £105.00 except C26 which is £130.00
4-WHEEL TRUCKS - Each priced at £80.00

2-RAIL PICKUP
8-WHEEL TRUCKS - Each priced at 110.00 except C26 which is £135.00
4-WHEEL TRUCKS - Each priced at 85.00

DCC READY
Add a further £5.00 to the above motored prices

UN-MOTORED Intended for STATIC models only.
Not suitable to be motorised at a later date. Any side frame may be selected.
8-WHEEL TRUCKS - Each priced at £87.00 except C26 which is £ 110.00
4-WHEEL TRUCKS - Each priced at £62.00

Notes:

  1. The price of any truck is influenced by the options selected. If in doubt about the total price, email me with your requirements.
  2. Truck prices also attract Postage & Packing charges and a payment fee if PayPal is used.
  3. All motored trucks can be made DCC "decoder ready" but the customer must stipulate this requirement when ordering as it affects the motor truck wiring.
  4. Trucks supplied should only be used on trackwork detailed on our web site.

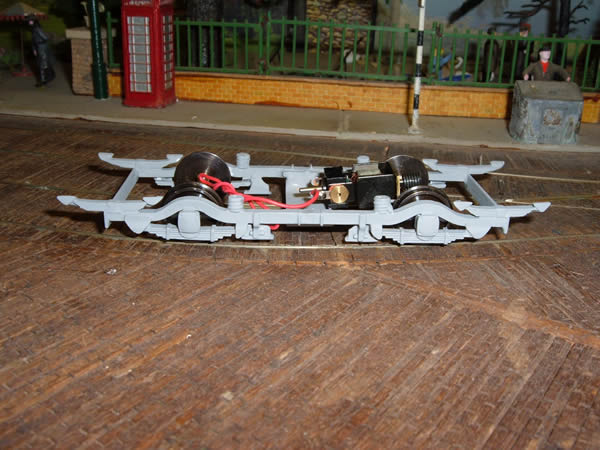

EMB Hornless 9ft Wheelbase C2
EMB Hornless 9ft Wheelbase
Liverpool, Aberdeen, Leeds, LCC.




BRILL 22E Maximum Traction C3
BRILL 22E Maximum Traction
LUT, MET, CCT, LCC, Manchester, L&CBER and others.

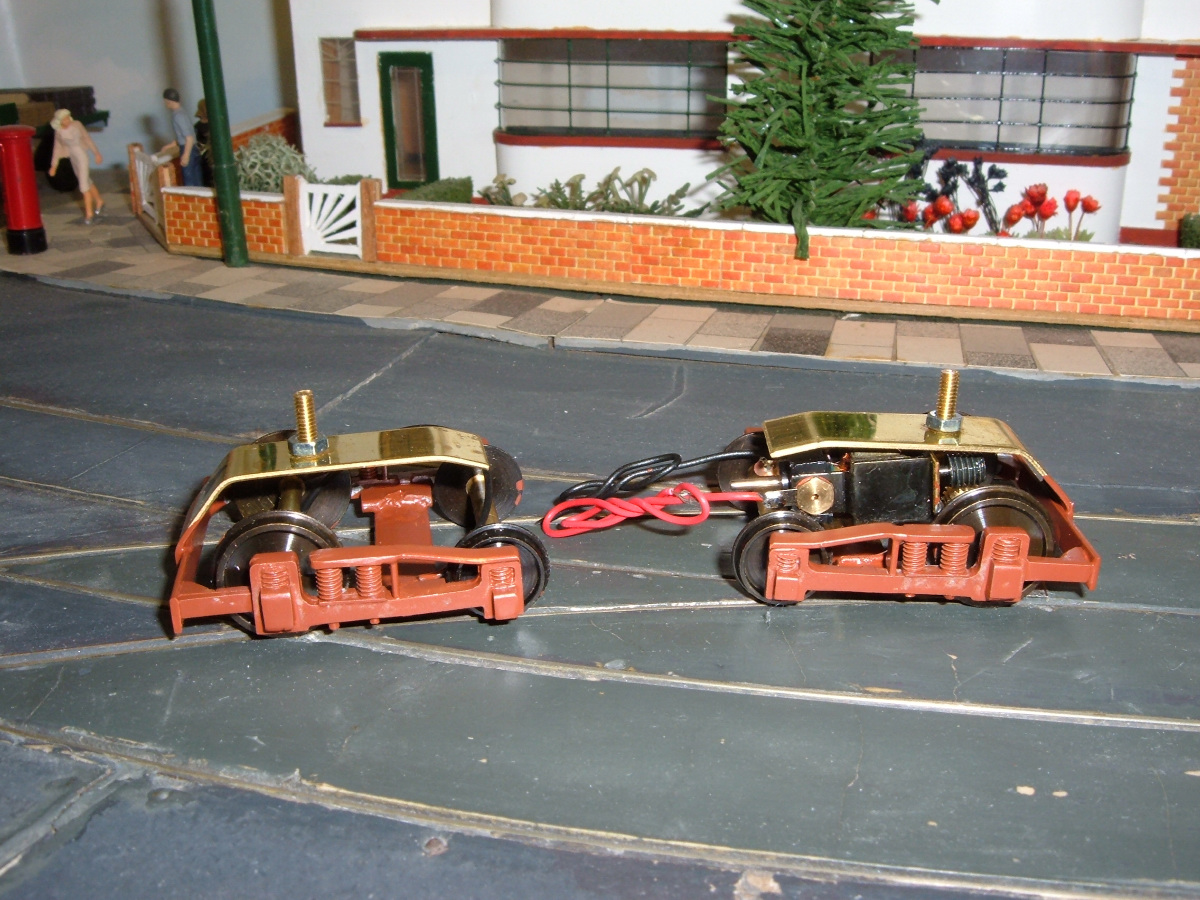

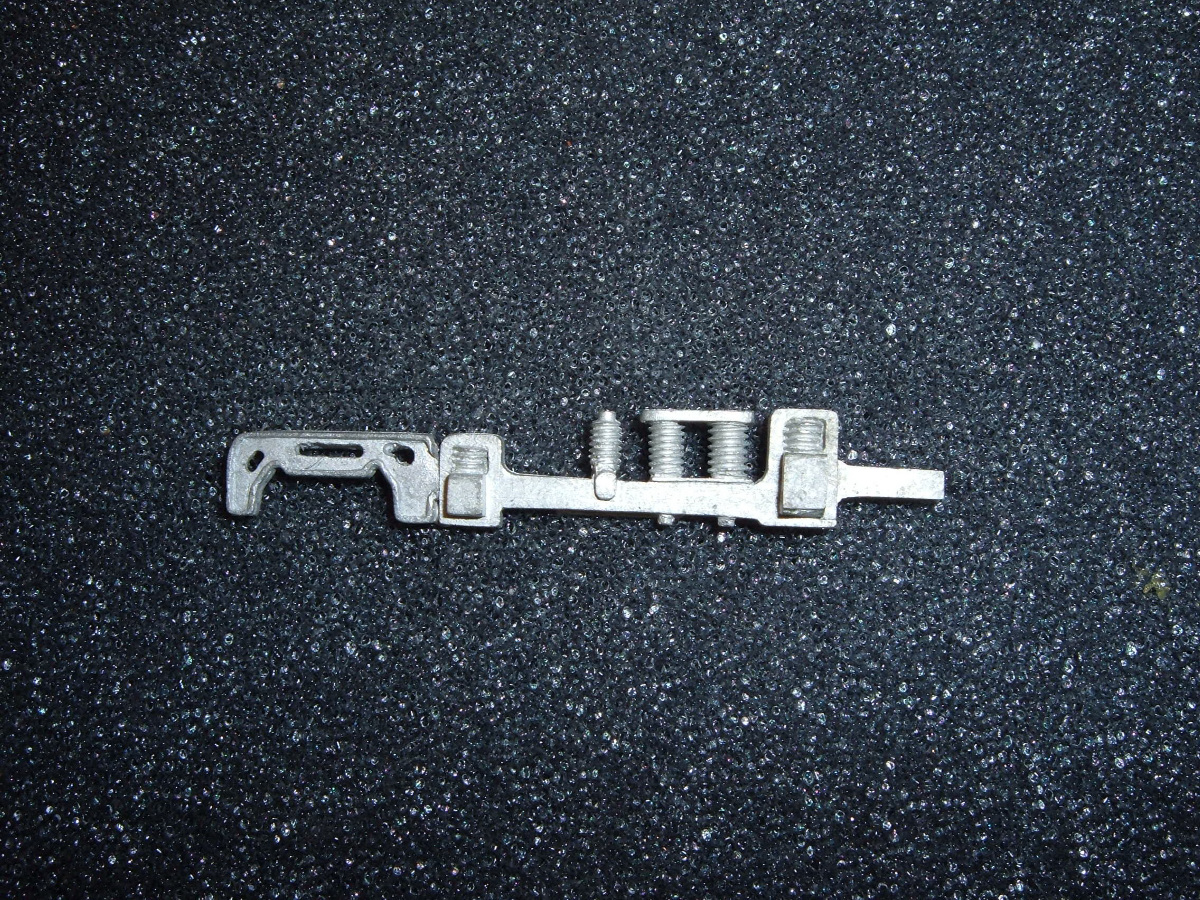

BRILL 22E maximum traction customised with truck mounted conduit plough carrier for LCC 'A' class cars C3 SPECIAL
BRILL 22E maximum traction customised with truck mounted conduit plough carrier for LCC 'A' class cars
Please ask for price quotation

BRILL 22E maximum traction customised with strengthening top bar for use under Manchester cars C3 SPECIAL
BRILL 22E maximum traction customised with strengthening top bar for use under Manchester cars
Please ask for price quotation

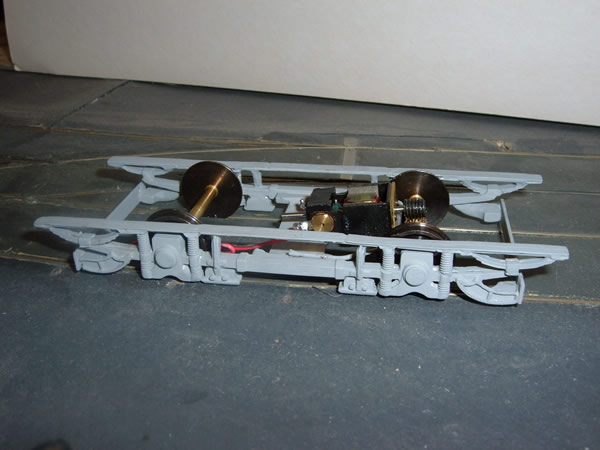

BRILL 21E Roller bearing 8ft wheelbase C4
BRILL 21E Roller bearing 8ft wheelbase
Glasgow.

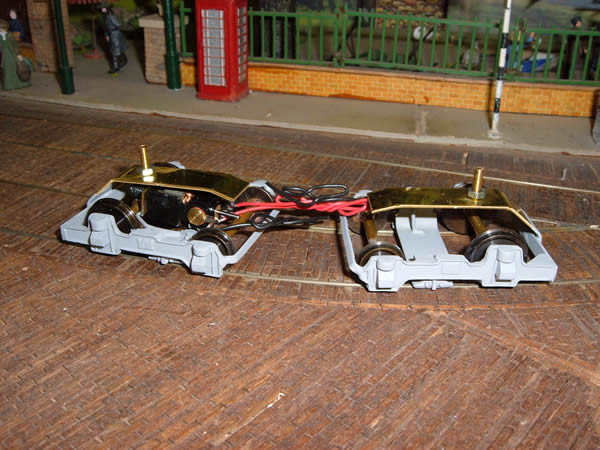

M and G Max Traction without plough carrier C5
M and G Max Traction
Fitted to London E1 class cars and also MET, Dublin, SHMD and others.

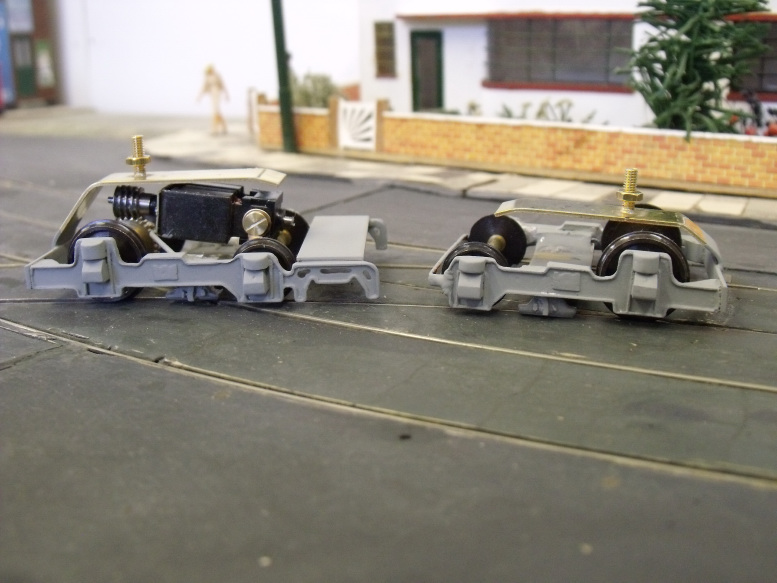

M and G Max Traction with plough carrier C5A
M and G Max Traction
With plough carrier - LCC.

Preston-McGuire truck side C6
Preston-McGuire truck side
Blackpool, Manx, L&CBER, Grimsby & Immingham.

3ft gauge Brush 'D' C6 SPECIAL
3ft gauge Brush 'D'
Manx Electric.

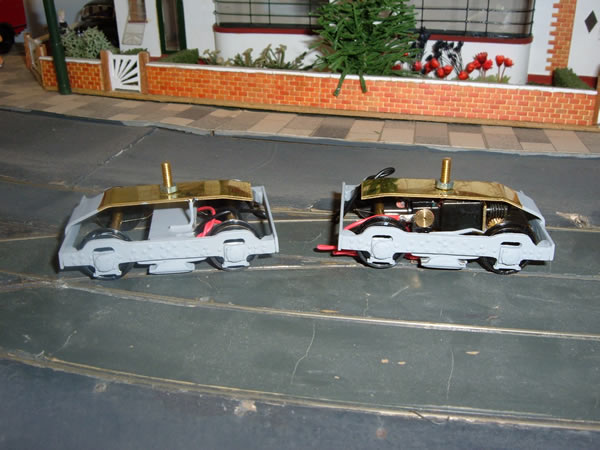

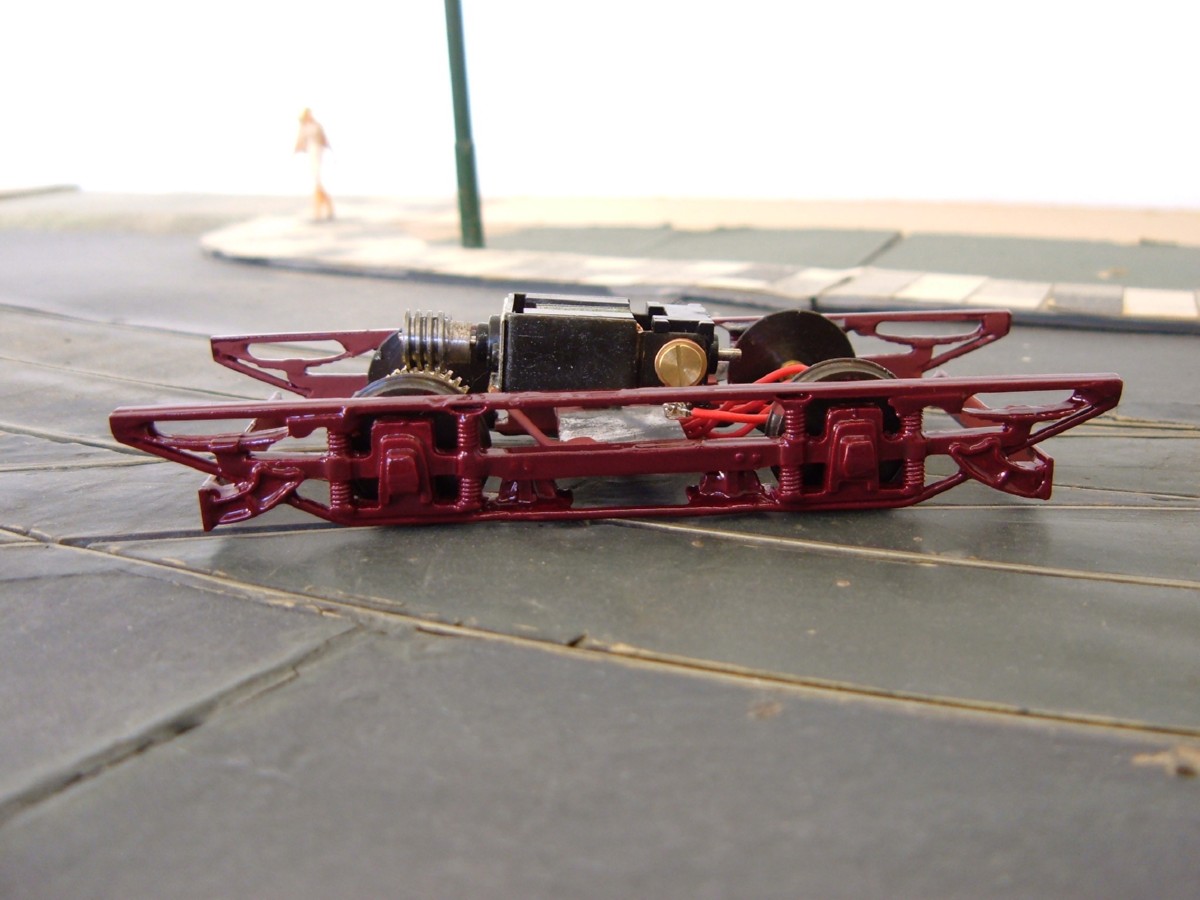

EMB LCC class 6 C7
EMB LCC class 6
18XX series Hr2

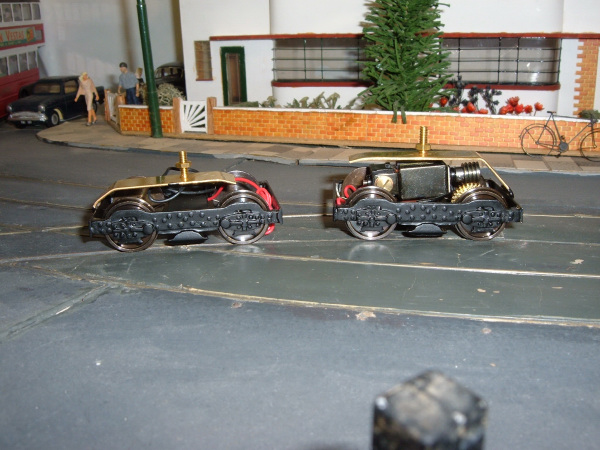

EMB LCC Class 6A Radial Arm C8
EMB LCC Class 6A Radial Arm
101-159 series Hr2 & ex LCC No. 1.

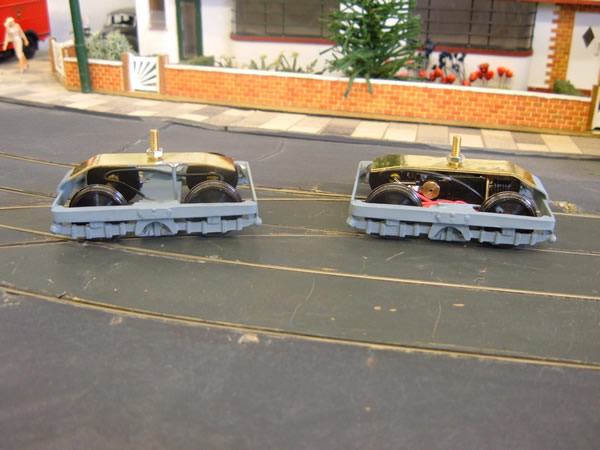

C9
EMB Lightweight
Liverpool, Aberdeen, Glasgow, Auckland.

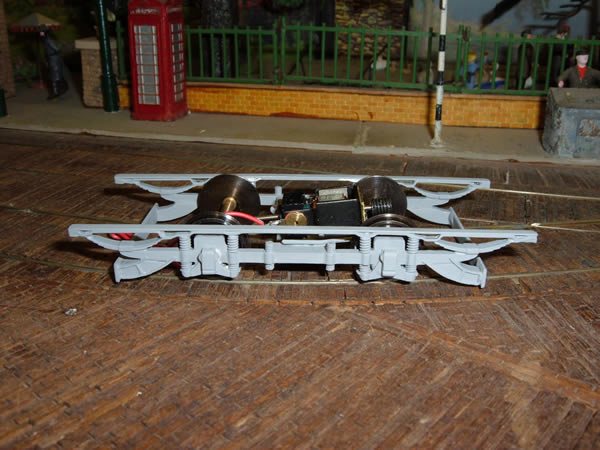

BRILL 21E 6ft wheel base C10
BRILL 21E 6ft wheel base
Many open top, balcony and enclosed cars in the UK and the world.

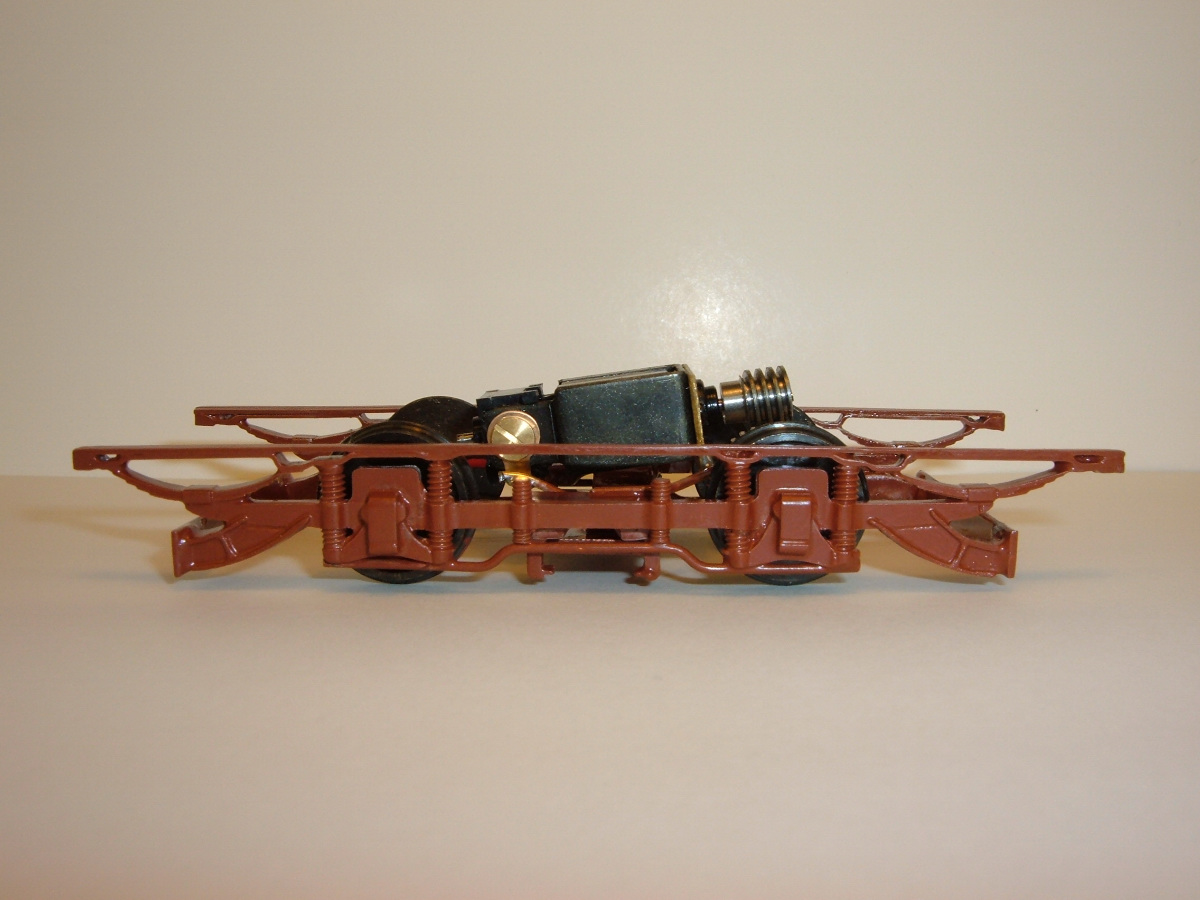

BRILL 21E 6ft wheel base customised with conduit plough carrier for LCC 'B' & 'C' class cars C10 SPECIAL
BRILL 21E 6ft wheel base customised with conduit plough carrier for LCC 'B' & 'C' class cars.
Please ask for price quotation.

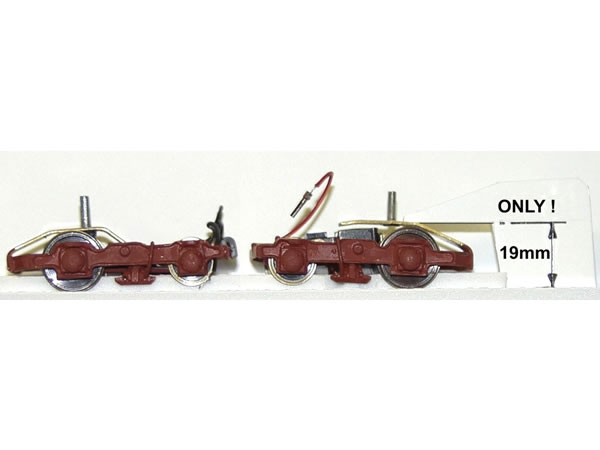

EMB Maximum Traction roller bearing C11
EMB Maximum Traction roller bearing
LT "Feltham" ex LUT & MET, Leeds, Darwen and Calcutta.

PECKHAM Cantilever 6ft 6in Wheelbase C12
PECKHAM Cantilever 6ft 6in Wheelbase
Bristol, Sheffield, Leeds, Croydon, Halifax and others.

BRILL 27G equal whee C13
BRILL 27G equal wheel
Newcastle, Salford and others.

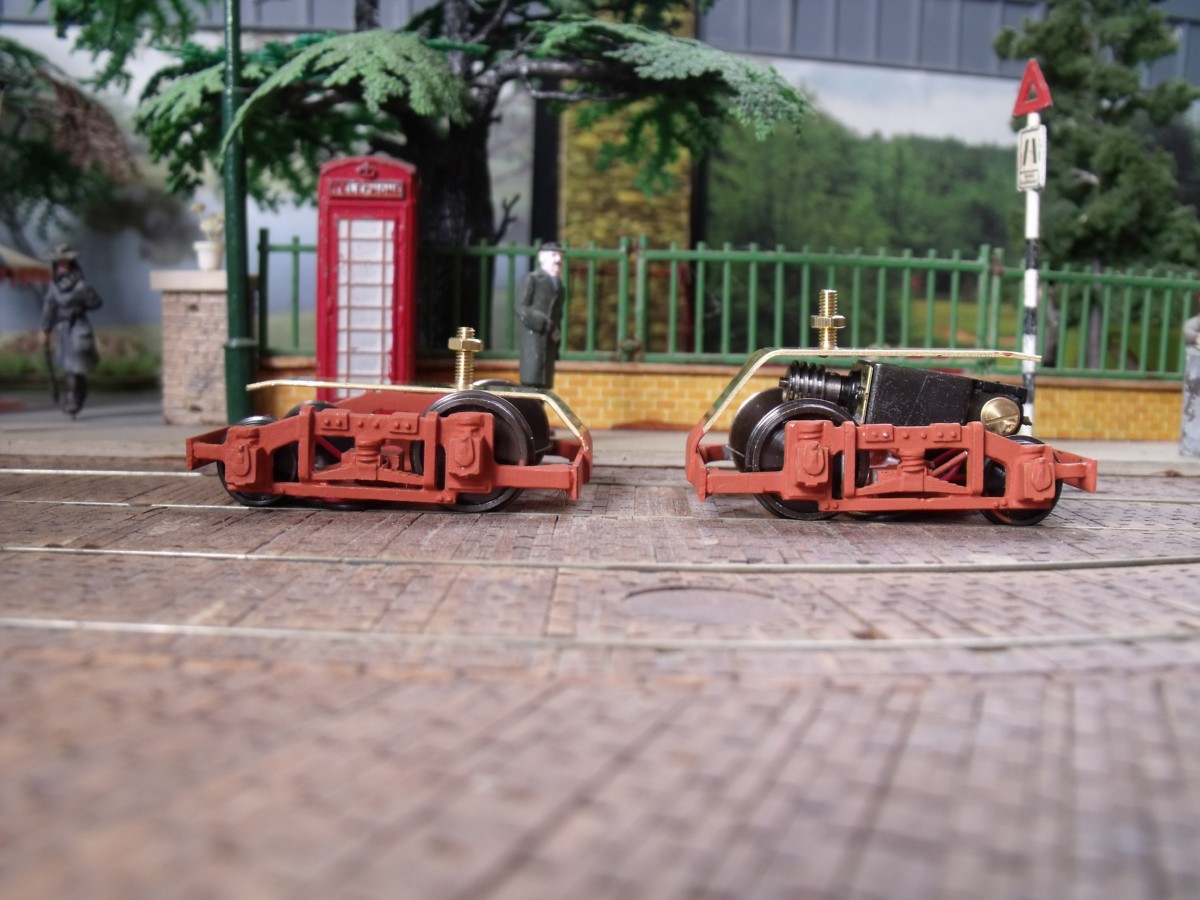

BRILL 39E Reversed Maximum Traction C14
BRILL 39E Reversed Maximum Traction
Gateshead and others.   ITEM DISCONTINUED

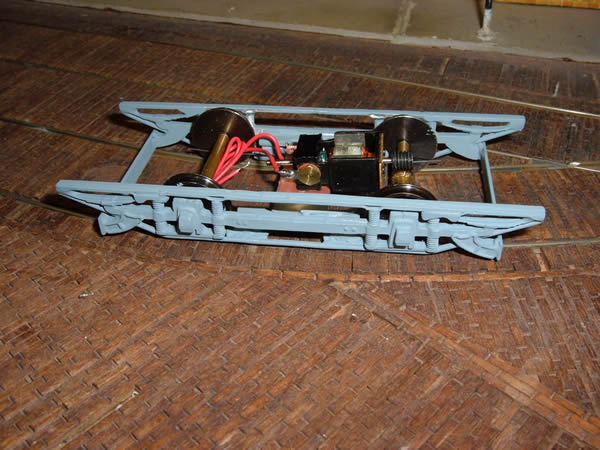

PECKHAM P22 8ft 6in w/base C15
PECKHAM P22 8ft 6in w/base
Sheffield, Edinburgh.

PECKHAM P35 8ft 6in w/base C16
PECKHAM P35 8ft 6in w/base
Leeds, Edinburgh, Manchester.

EMB Heavy Weight C17
EMB Heavy Weight
Liverpool, Glasgow, Johannesburg.

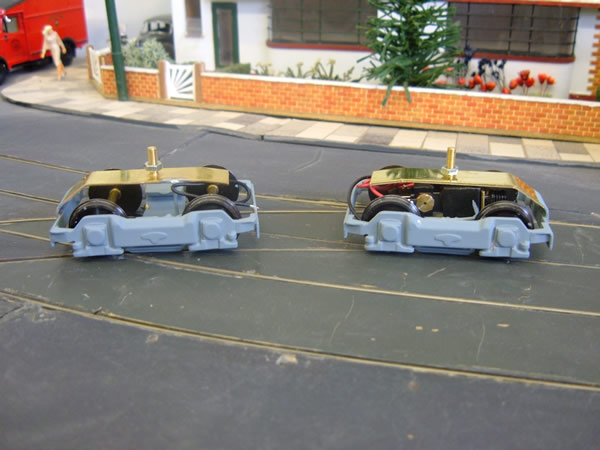

MALEY & TAUNTON swing link C18
MALEY & TAUNT ON swing link
Liverpool, Leeds, Glasgow, Johannesburg.

English Electric Blackpool bogie C19
English Electric Blackpool bogie
1935 era streamlined cars and Swansea & Mumbles.

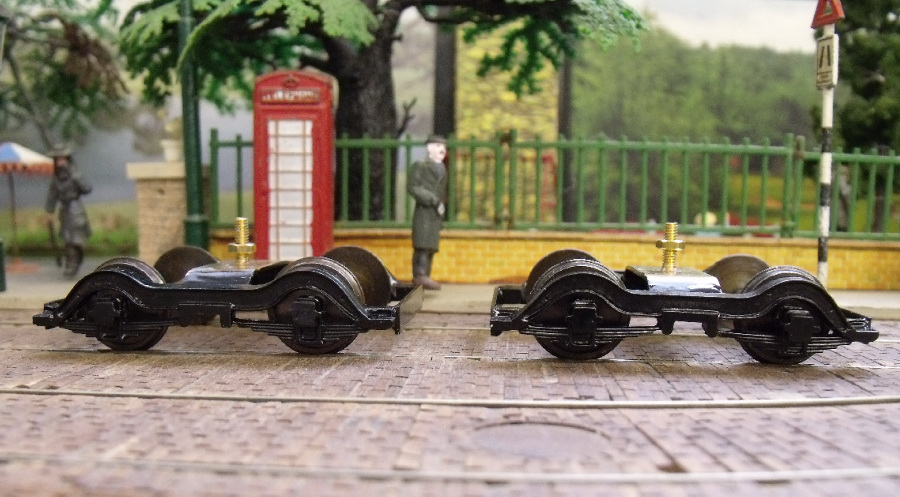

Melbourne & Metropolitan Tramways No.15 bogie 62in wheel base C20
Melbourne & Metropolitan Tramways No.15 bogie 62in wheel base [shown in un-motored state]
+ Sydney & Hobart.

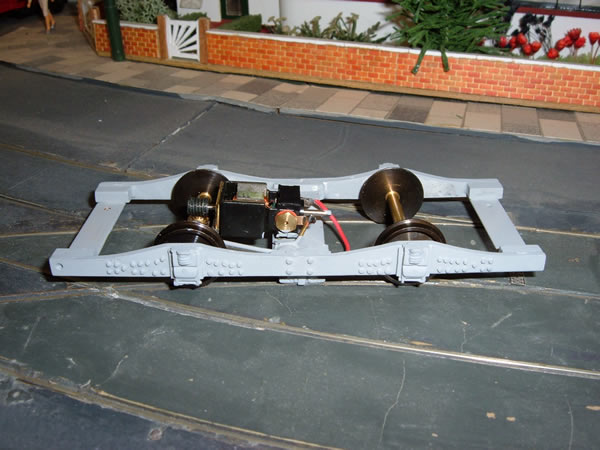

HURST NELSON LCC Class 5 Swing bolster C21
HURST NELSON LCC Class 5 Swing bolster
LCC M, Paisley.

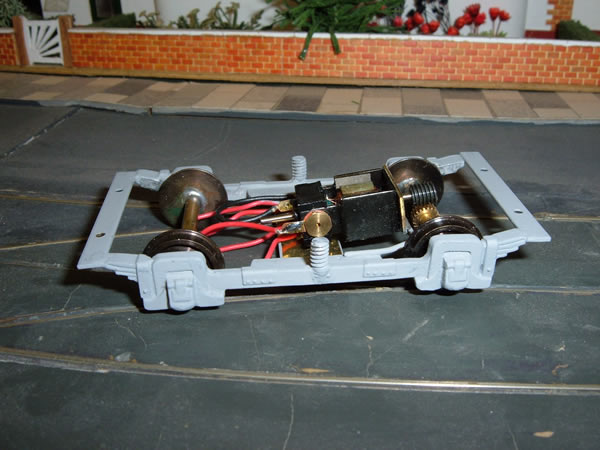

BRILL 79E C23
BRILL 79E
Birney safety 4 wheel 8ft wheelbase for Corgi Birney car.

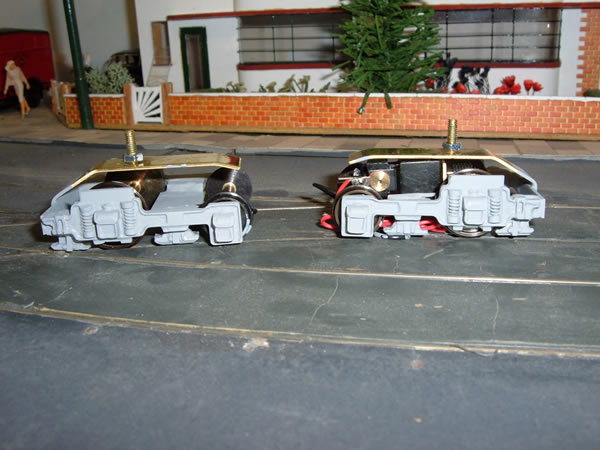

EMB Burnley maximum traction C25
EMB Burnley maximum traction
Birmingham, South Lancs, Shanghai.




PCC type B2 C26
PCC type B2
Suitable for Blackpool "Coronation" cars.
Check pricing carefully for the options selected. If in doubt, please email me with your requirements.

Peckham P22 C27
Peckham P22 7ft 6" wheelbase
With optional centre board for use under West Ham balcony cars.

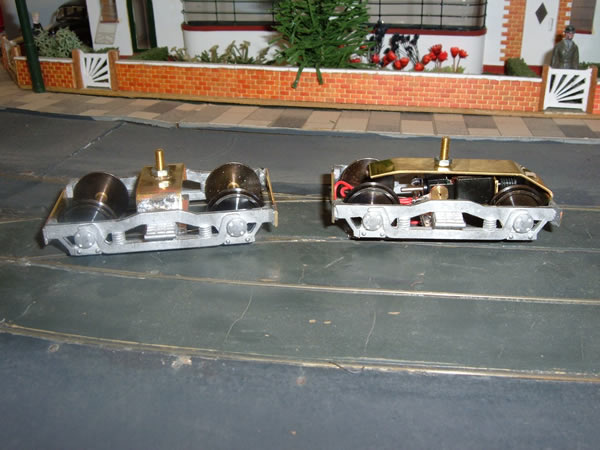

Pennsylvania USA type 6ft wheelbase C28
Pennsylvania USA type 6ft wheelbase
Vicinal [Belgium] and USA cars.

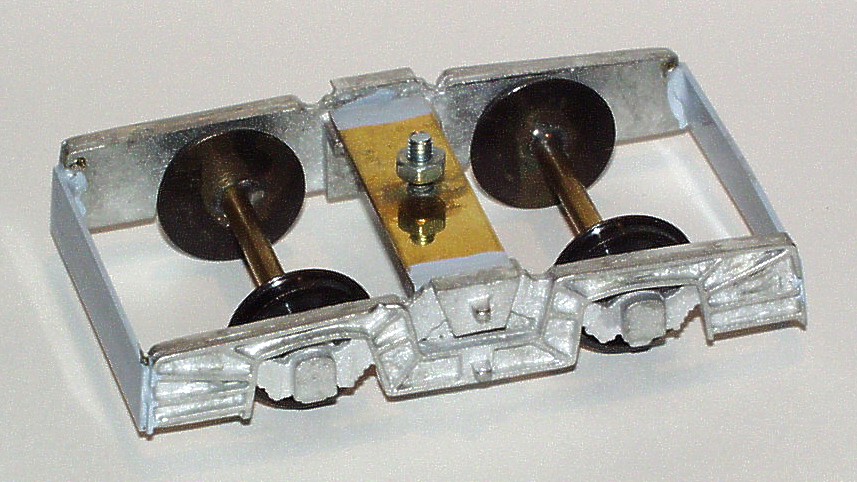

Blackpool 'Centenary' Class C29
Blackpool 'Centenary' class bogie.

EMB. Class 4 max traction roller bearing
C30
EMB. Class 4 max traction roller bearing.
LCC and LPTB E/3 tramcars.

EMB. Class 4 max traction roller bearing
C31
Peckham P22A designed for Edinburgh with smaller wheels and lower overall height
Edinburgh Tramcars.
